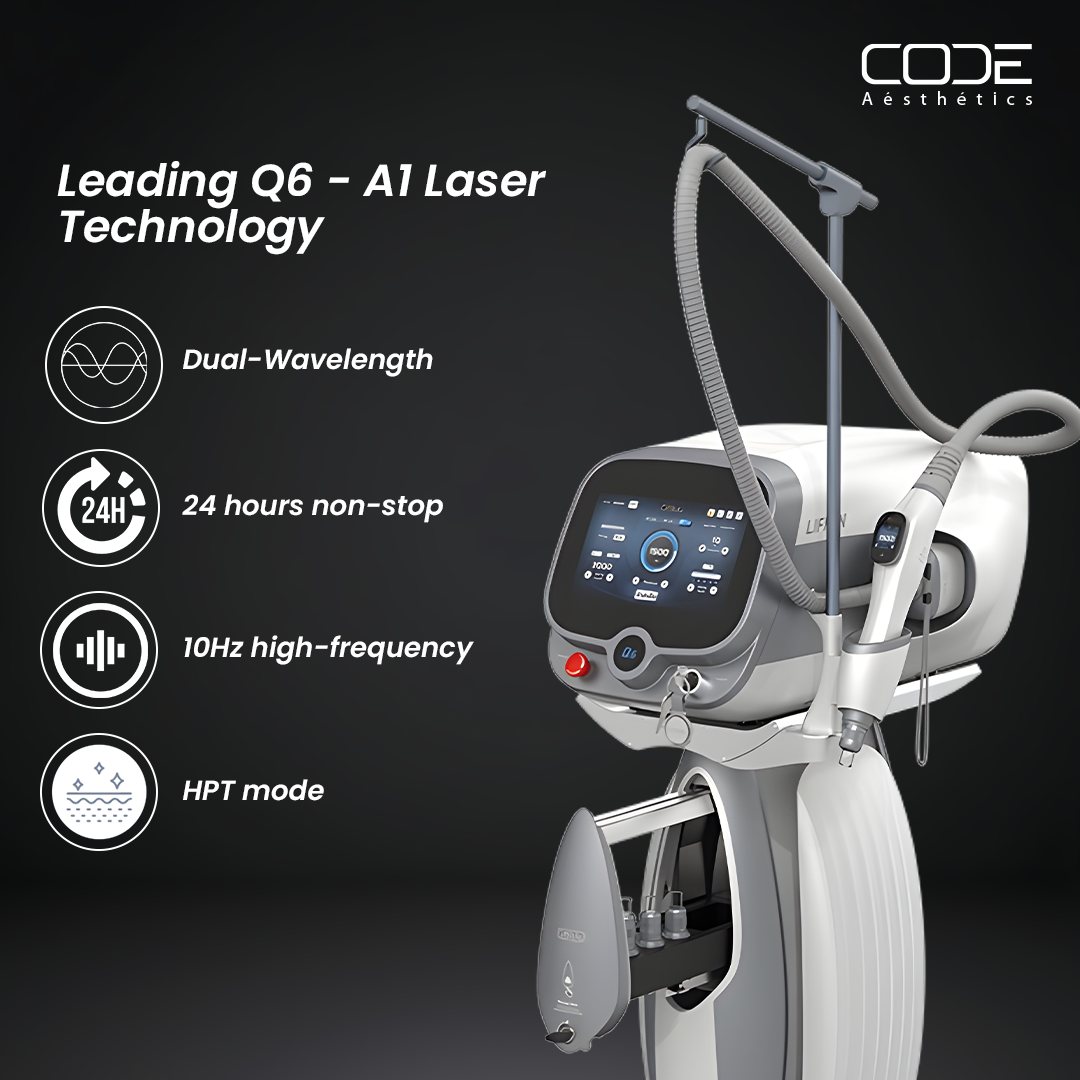

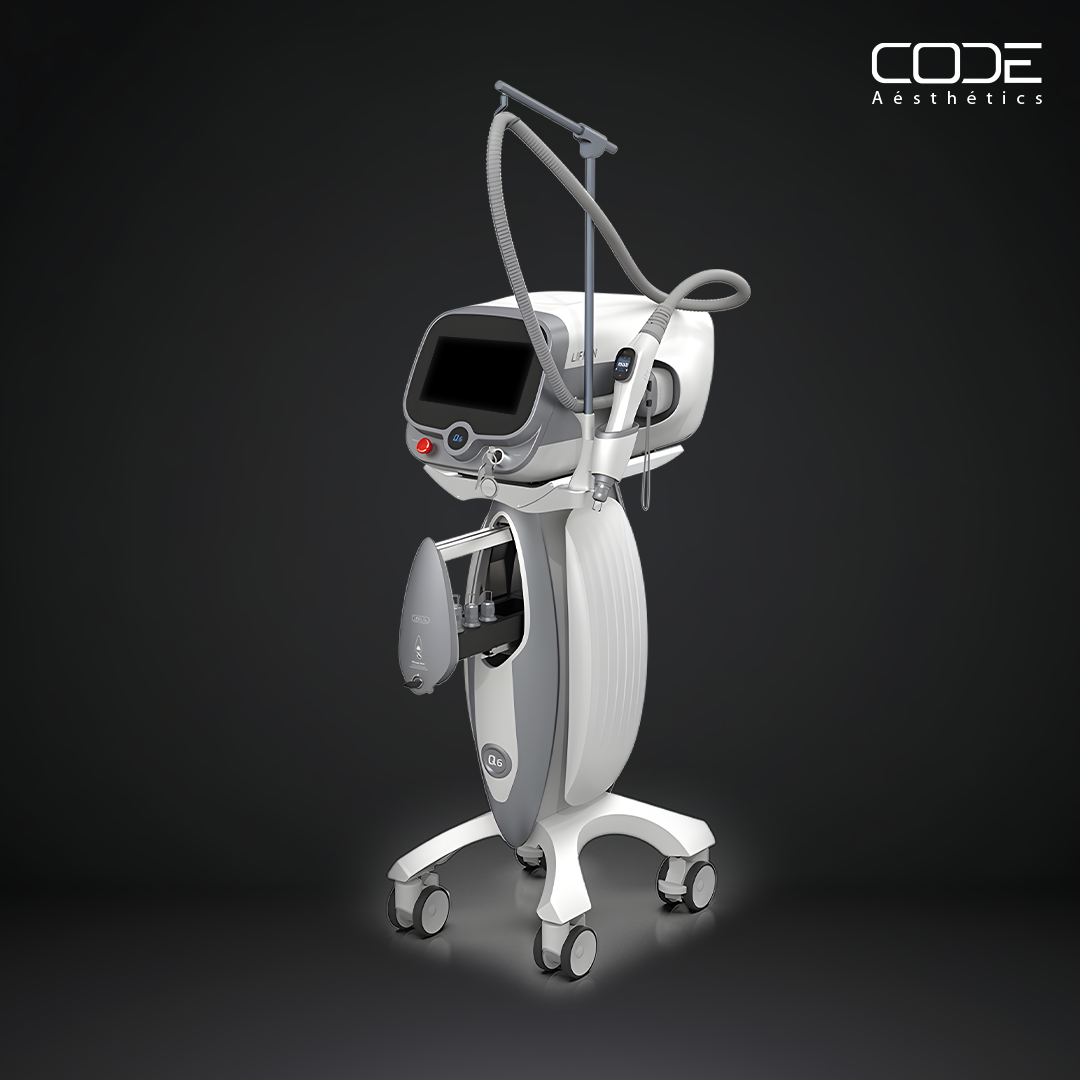

Q-Switched ND: YAG Laser-Q6 is an advanced dual-wavelength aesthetic device (1064nm & 532nm) designed for precise, non-invasive treatment of pigmentation, tattoo removal, skin rejuvenation, acne scars, and vascular lesions. Its technology combines Q-switching, fractional, and zoom modes with multiple applicators to deliver high-energy pulses (up to 1500mJ) safely and efficiently.

Core Technology

1. Dual-Wavelength Laser System

   • 1064nm Wavelength: Deeply penetrates the dermis, effective for dark tattoos, dermal pigmentation, and post-inflammatory hyperpigmentation.

   • 532nm Wavelength: Targets superficial layers, ideal for lighter pigments, vascular lesions, red/brown pigmentation, and delicate skin areas.

2. Q-Switching Technology

   • Generates ultra-short, high-intensity pulses, breaking down pigments and tattoo particles into microscopic fragments.

   • Enables non-thermal energy delivery, preventing burns and minimizing tissue damage.

3. Fractional & Zoom Modes

   • 8x8mm Fractional Mode: Perfect for densely pigmented tattoos, skin rejuvenation, and carbon facials.

   • Zoom Mode (2–6mm & 2–4mm): Allows precise targeting of small spots, epidermal and dermal pigmentation, birthmarks, and freckles.

4. HPT & SPT Intelligent Switching

   • Ensures optimal energy delivery for variable skin conditions.

   • Allows seamless switching between high-power tattoo removal and superficial pigmentation treatments.

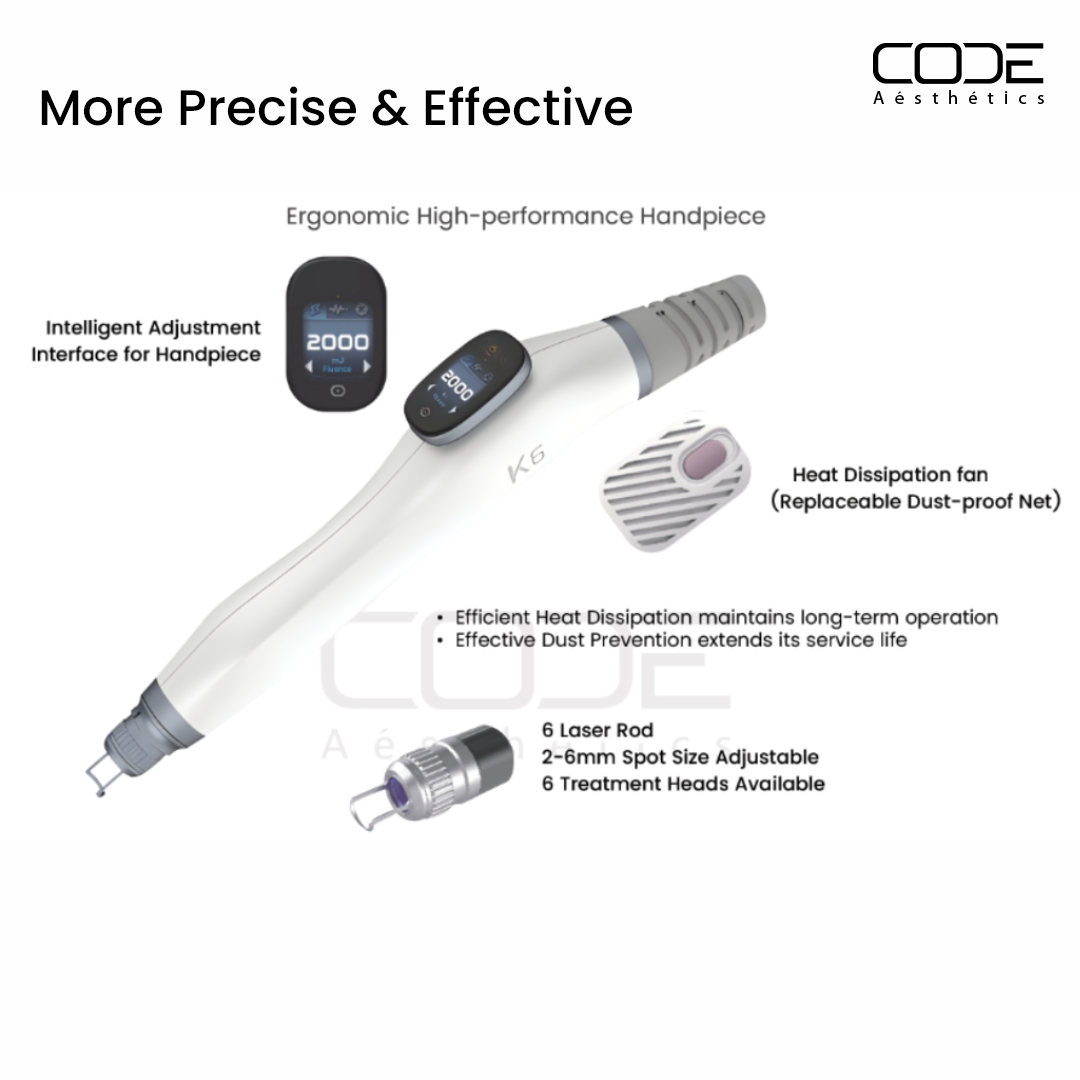

5. Multiple Applicators & Handpiece Integration

   • 6 Treatment Heads: Suitable for different skin areas and treatment depths.

   • Φ6mm Laser Rod (2–6mm spot): Provides adjustable targeting for various spot sizes.

   • Ergonomic Handpiece: Parameters adjustable directly on the handpiece for efficient and precise treatment.

6. High-Frequency Operation

   • Up to 10Hz frequency allows rapid, continuous treatments with consistent energy delivery.

   • Supports 24-hour non-stop clinical use, ensuring reliability in high-demand aesthetic clinics.

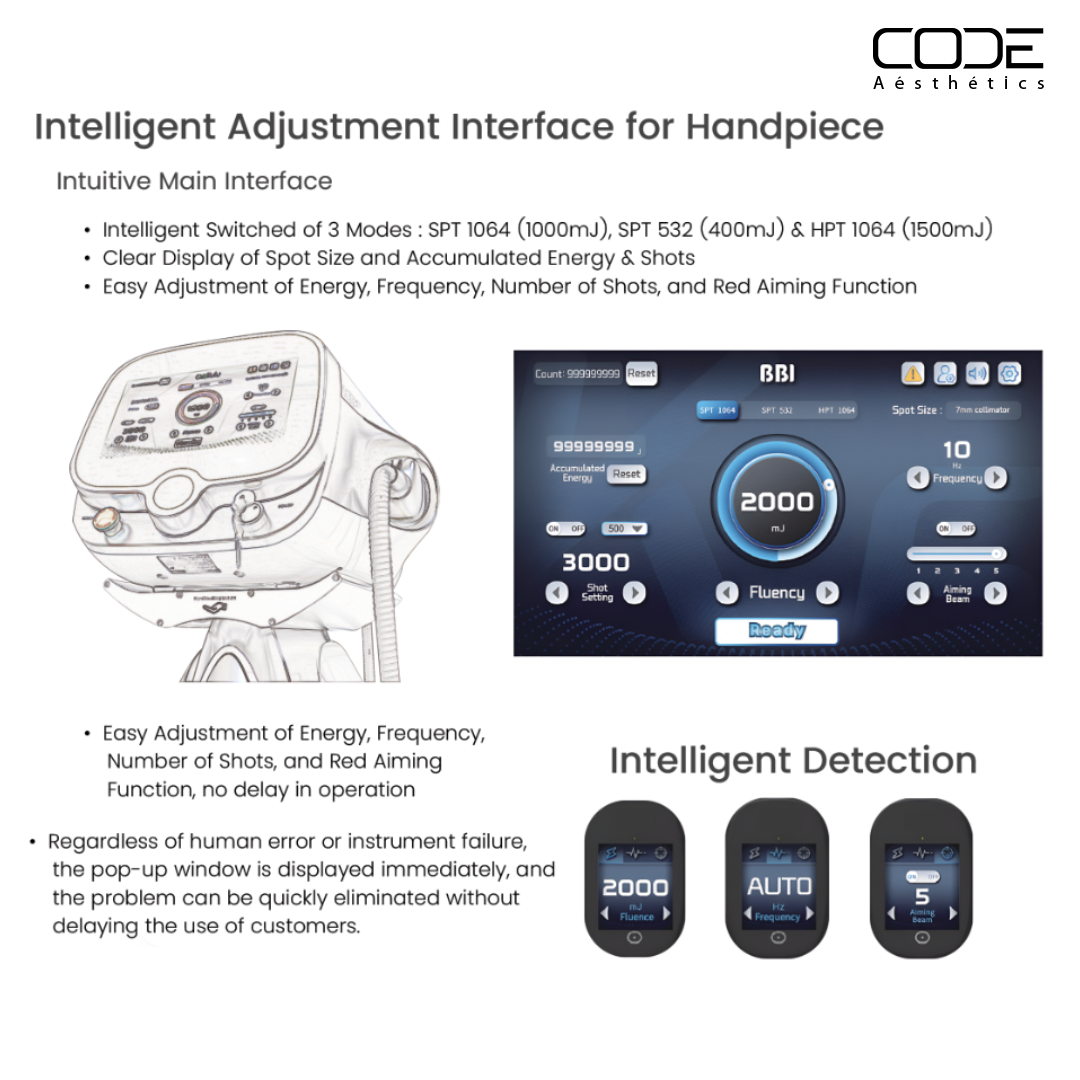

7. Advanced Touchscreen Interface

   • Multilingual, multi-touch screen provides real-time feedback, safety alerts, and treatment customization.

   • Facilitates integration of patient records and treatment monitoring for professional-grade operations.

8. Applications Supported by Technology

   • Tattoo Removal: All colors including grey, black, dark blue.

   • Pigmentation Correction: Melasma, lentigines, café au lait spots, post-inflammatory hyperpigmentation, age spots.

   • Skin Rejuvenation: Enlarged pores, blackheads, whitening, oil control, carbon facial, acne scars.

   • Vascular Lesions & Red Pigmentation: Dark lips, superficial vascular spots.

   • Birthmarks & Nevus Treatments: Nevus of Ota, Nevus of Ito.

9. Safety & Efficacy

   • Selective photothermolysis ensures precise treatment while protecting surrounding skin tissue.

   • Non-thermal delivery minimizes discomfort, allows zero downtime, and is suitable for all skin types.

Summary

By combining dual wavelengths, fractional and zoom modes, multiple applicators, high-energy pulses, and intelligent switching (HPT/SPT), the Q6 Nd:YAG Laser delivers precise, effective, and customizable treatments for a wide range of dermatological and aesthetic applications. Its ergonomic design, touchscreen interface, and high-frequency operation ensure professional control, patient safety, and optimal results, making it a trusted choice for advanced skin and tattoo treatments.
